Ruckus R730 Indoor Access Point (End of Sale/Life)

Based on the latest 802.11ax Wi-Fi standard, the R730 bridges the performance gap from 'gigabit' Wi-Fi to 'multi-gigabit' Wi-Fi to support the insatiable demand for better and faster Wi-Fi.

The Ruckus R730 is the highest capacity dual-band, dual-stream 802.11ax AP supporting 12 spatial streams (8x8:8 at 5 GHz, 4x4:4 at 2.4 GHz). The R730 with OFDMA and MU-MIMO capabilities efficiently manages more than 1K client connections with increased capacity, enhanced coverage and performance in ultra-high density environments. In addition, 5 Gbps multi-Gigabit Ethernet ports increase backhaul capacity.

Furthermore, the R730 is IoT and LTE ready and, when combined with the Ruckus IoT suite and our CBRS/OpenG modules, supports wireless standards beyond Wi-Fi.

The R730 meets increasing customer demands in transit hubs, auditoriums, stadiums, conference centres and other high-traffic indoor spaces. It is the perfect choice for data-intensive streaming multimedia applications such as 4K video transmissions, while supporting latency-sensitive voice and data applications with high quality of service requirements.

Combined with the Ruckus Ultra-High-Density Technology Suite, found only in the Ruckus Wi-Fi portfolio, the R730 dramatically improves network performance through a combination of patented wireless innovations and learning algorithms:

• Airtime Decongestion: Increases average network throughput in highly congested environments
• Transient Client Management: Reduces interference traffic from disconnected Wi-Fi devices

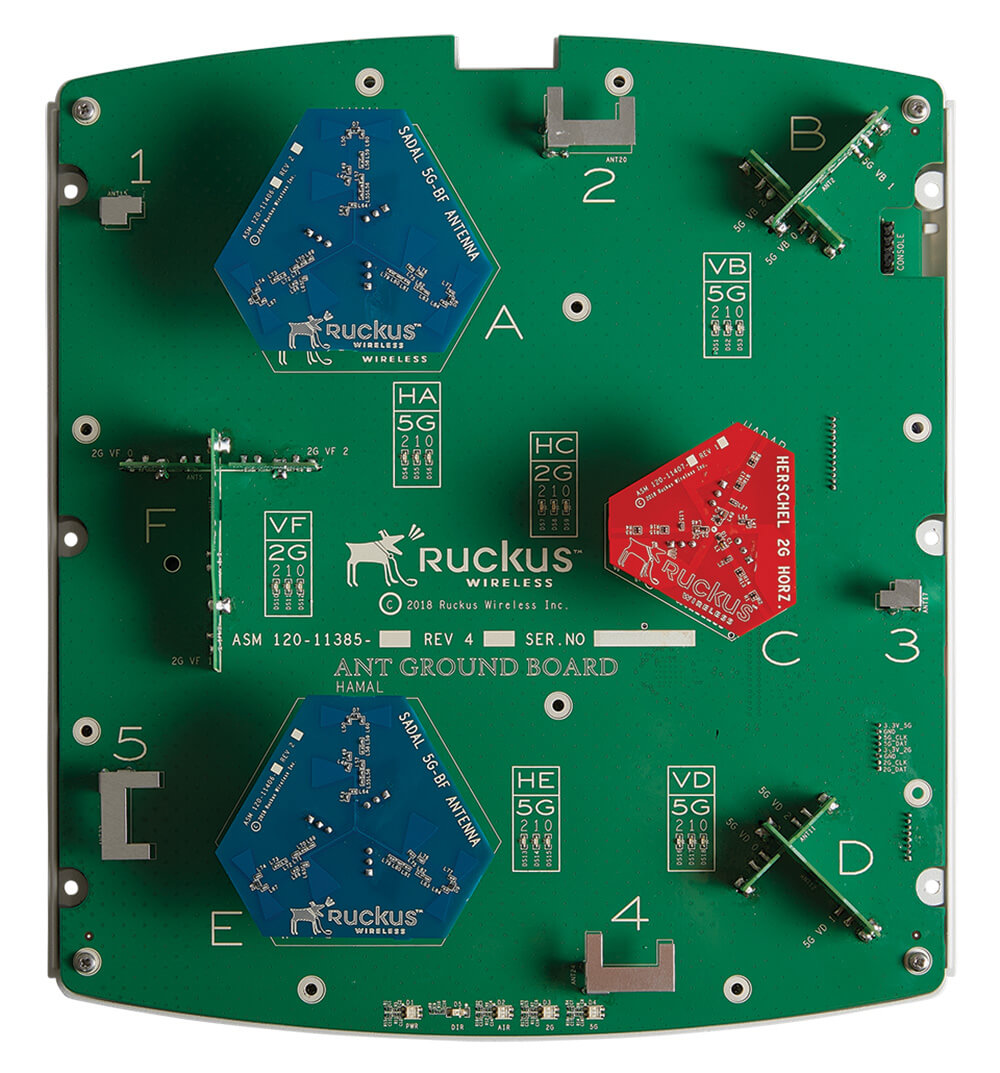

• BeamFlex+ antennas: Extended coverage and optimised throughput with patented multi-directional antennas and radio patterns

Whether you deploy ten or ten thousand APs, the R730 is also easy to manage through the Ruckus appliance and virtual management options.

Your benefits:

• CONNECT MORE DEVICES AT THE SAME TIME
  Improve device performance by enabling more simultaneous device connections with built-in 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology.
• ULTRA-HIGH-DENSITY PERFORMANCE
  Provides an exceptional end-user experience in stadiums, large public venues, convention centres and schoolyards with the Ruckus Ultra-High-Density Technology Suite.
• ENHANCED SECURITY
  Upgrade to the latest Wi-Fi security standard with WPA3 and get enhanced protection from man-in-the-middle attacks in the safest way possible.
• MULTI-GIGABIT ACCESS SPEED

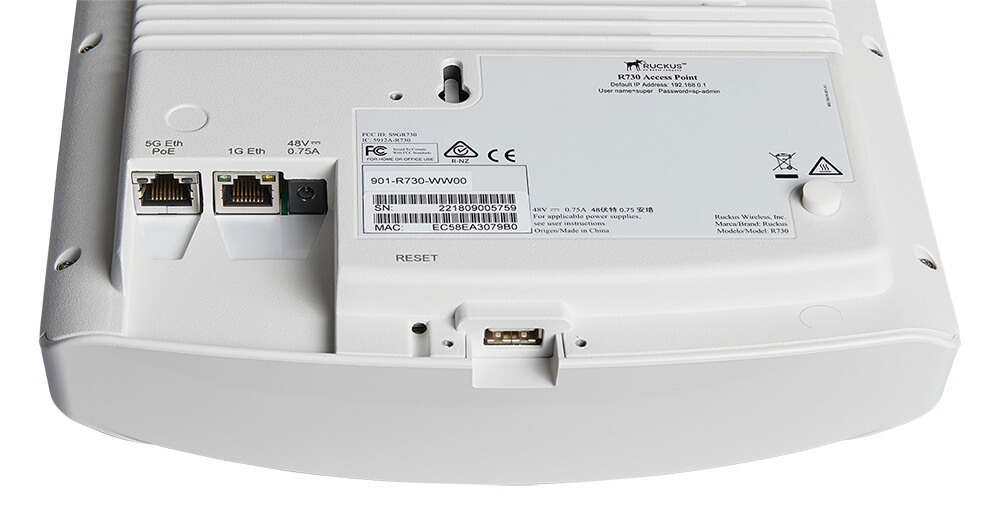

  Optimised multi-gigabit Wi-Fi performance delivered via built-in 5GbE/2.5GbE Ethernet ports for connection to multi-gigabit switches.
• Device Management
  OPTIONS Manage the R730 with on-site physical/virtual devices and control auto provisioning for faster deployment and seamless firmware upgrades.
• Better MESH NETWORK FORMATION
  Minimise complexity by reducing costly cabling with SmartMesh™, which dynamically creates self-forming, self-healing mesh networks.
• AUTOMATISING OPTIMUM THROUGHOUT
  ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
• MORE THAN WI-FI
  Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi location engine and SCI network analytics.

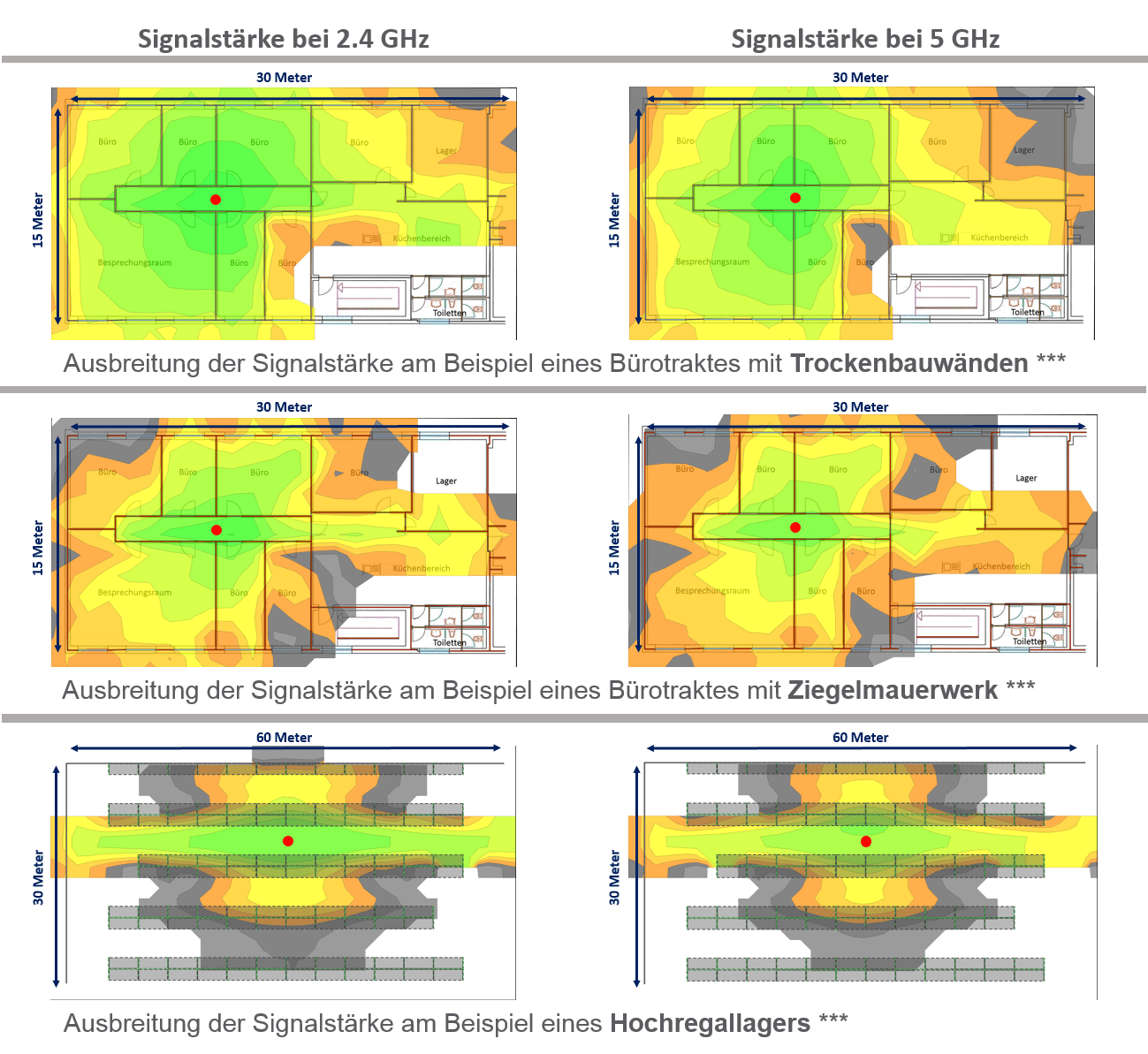

Signal strength of the Ruckus R730 in different scenarios (ceiling-mounted)

***These graphics show the propagation of the signal strength within the framework of standardised attenuation values for walls and sources of interference according to the respective material properties. Deviations in signal propagation are possible depending on the building material.
