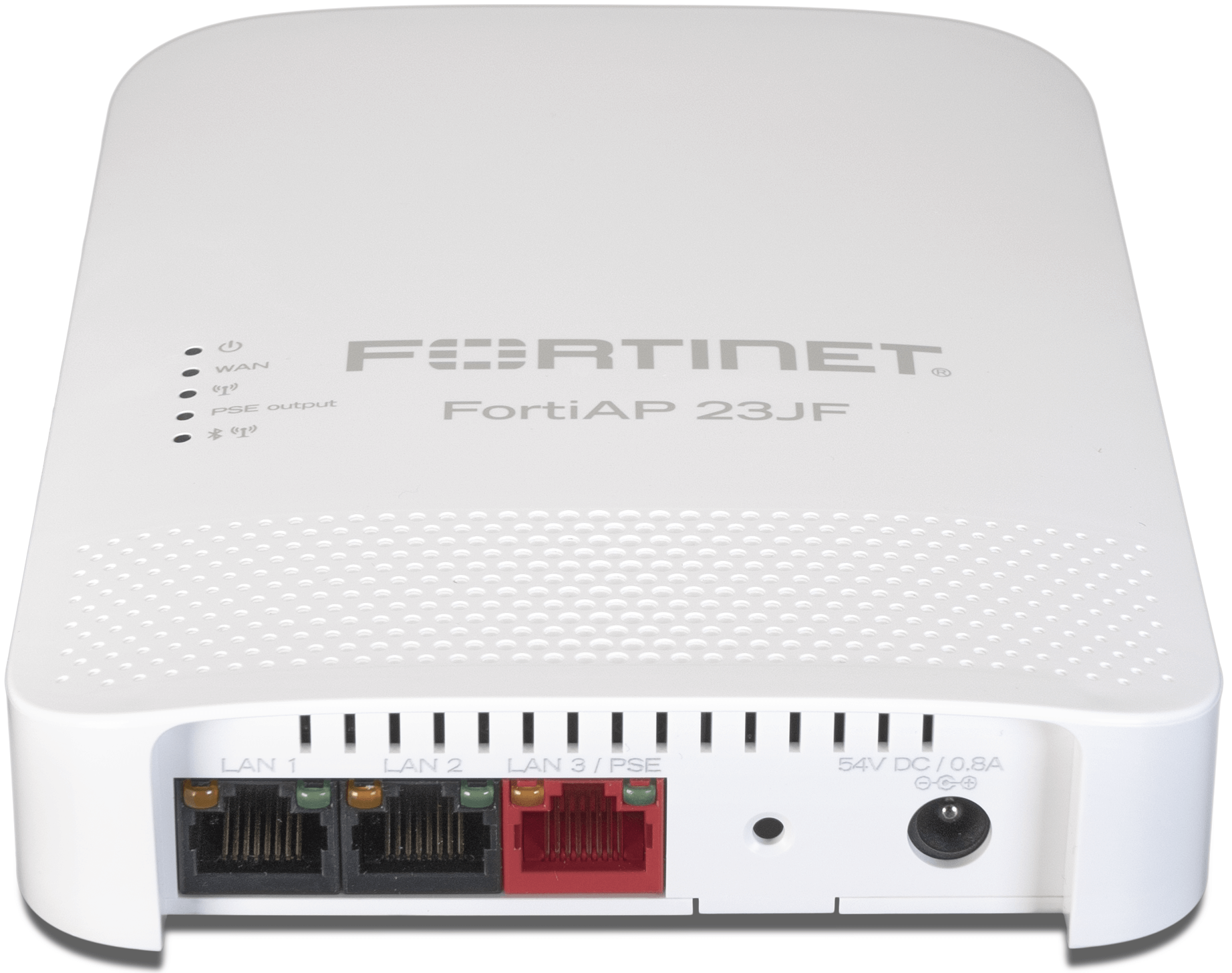

Fortinet FortiAP-23JF

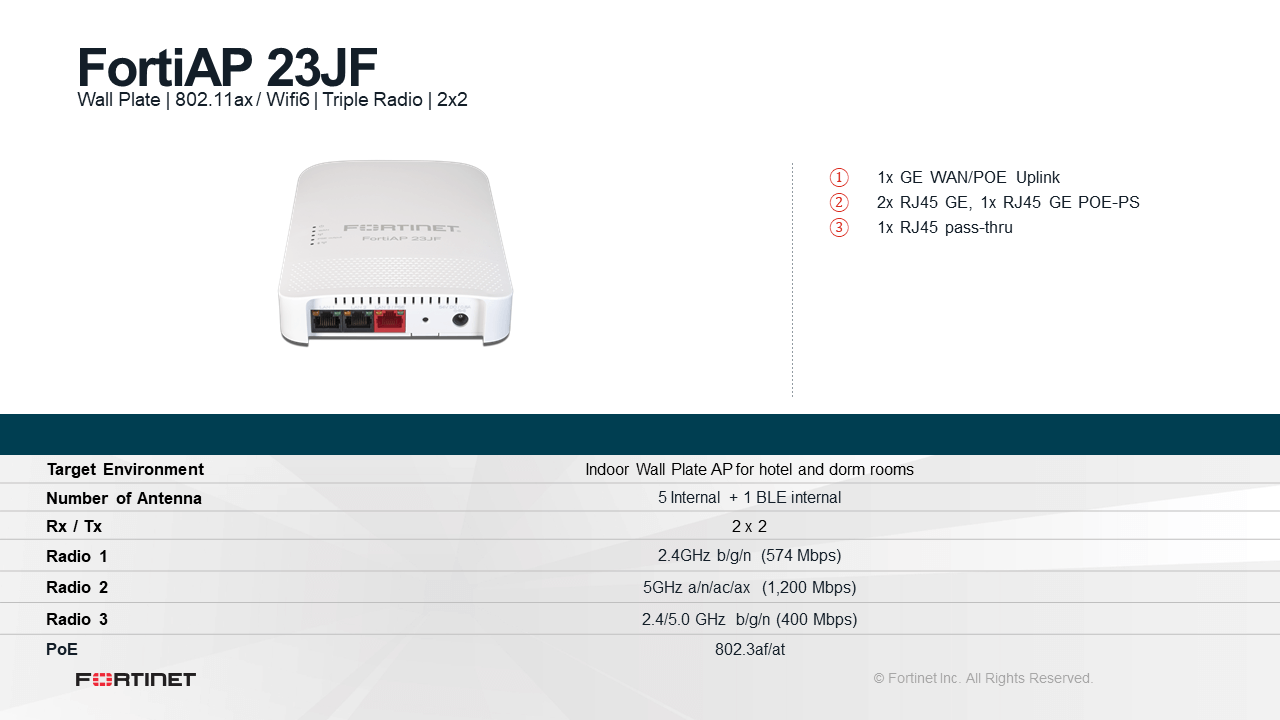

Wall Plate AP - Dual radio (802.11 b/g/n/ax 2x2 MU-MIMO and 802.11 a/n/ac/ax 2x2 MU-MIMO), internal antennas, 4 x 10/100/1000 RJ45 port (1x 802.3at PoE PD, 1x 802.3af PoE PSE, 2x Non-PoE Ports), BT / BLE, 1x RS-232 RJ45 Serial Port. Wall plate mounting kit includedFor power order: 802.3af PoE injector GPI-130. Region Code E

Product information "Fortinet FortiAP-23JF"

Begrenztes Budget? - Fordern Sie jetzt Ihr attraktives Angebot an!

The FortiAP 23JF is a triple-radio 802.11ax AP for indoor environments with medium endpoint density, including hotspots or social WiFi deployments. As a triple-radio and dual-band device, the FortiAP 432F supports simultaneous client connection with rogue AP scanning for PCI compliance.

FortiAP access points are managed free of charge and centrally via the built-in WLAN controller of any FortiGate security appliance or via the FortiAP Cloud deployment and management portal, also free of charge. By integrating wireless controller functionality with the market-leading FortiGate appliance, these APs are perfect for protecting your LAN edge from campus to branch offices. Fortinet's Security Fabric enables easy management of wired and wireless security from a single glass management console, protecting your network from the latest security threats.

  • Unified Management
    Unified management console simplifies operations and provides consistency for effective policy enforcement and compliance.
  • Advanced Security Protection
    Wireless LAN security from the network security leader. Integrated firewall, IPS, application control and web filtering protect the WLAN from the latest security threats.
  • Integrated Wi-Fi Security
    Protects the network from advanced wireless threats and meets PCI DSS compliance.
  • Deployment
    FortiAPs enable a versatile choice of installation topologies with options to suit any business.

Highlights

Fortinet access points are designed for a wide range of deployments, from branch offices to medium to large offices, schools, universities, hospitals, hotels and large retail stores. Access points can serve such a wide range of applications because they can be managed by any of Fortinet's control and management offerings: FortiGate, FortiWLC and FortiAP Cloud.

  • Small/Medium Business
    Retailers can streamline in-store WLAN deployment by combining Universal APs and FortiAP Cloud Management. Combined with FortiDeploy for zero-touch deployment, this provides a cost-effective solution for retail IT.
  • Education
    The education sector is facing increasing risk from cyberattacks. This, combined with requirements to protect minors from inappropriate materials, can make WLAN deployment challenging. A Secure Wireless Controller (FortiGate) ensures students have secure access to learning resources, while FortiGuard services provide cybersecurity protection.
  • Healthcare
    Patient safety is a top priority. Fortinet APs enable hospitals to improve patient safety by enabling vital applications such as telemetry that require low bandwidth but exceptionally high reliability. The dedicated wireless controller (integrated WLAN controller of each FortiGate security appliance) associated with the access points keeps patient safety top of mind while providing improved performance for wireless-enabled medical devices.
.

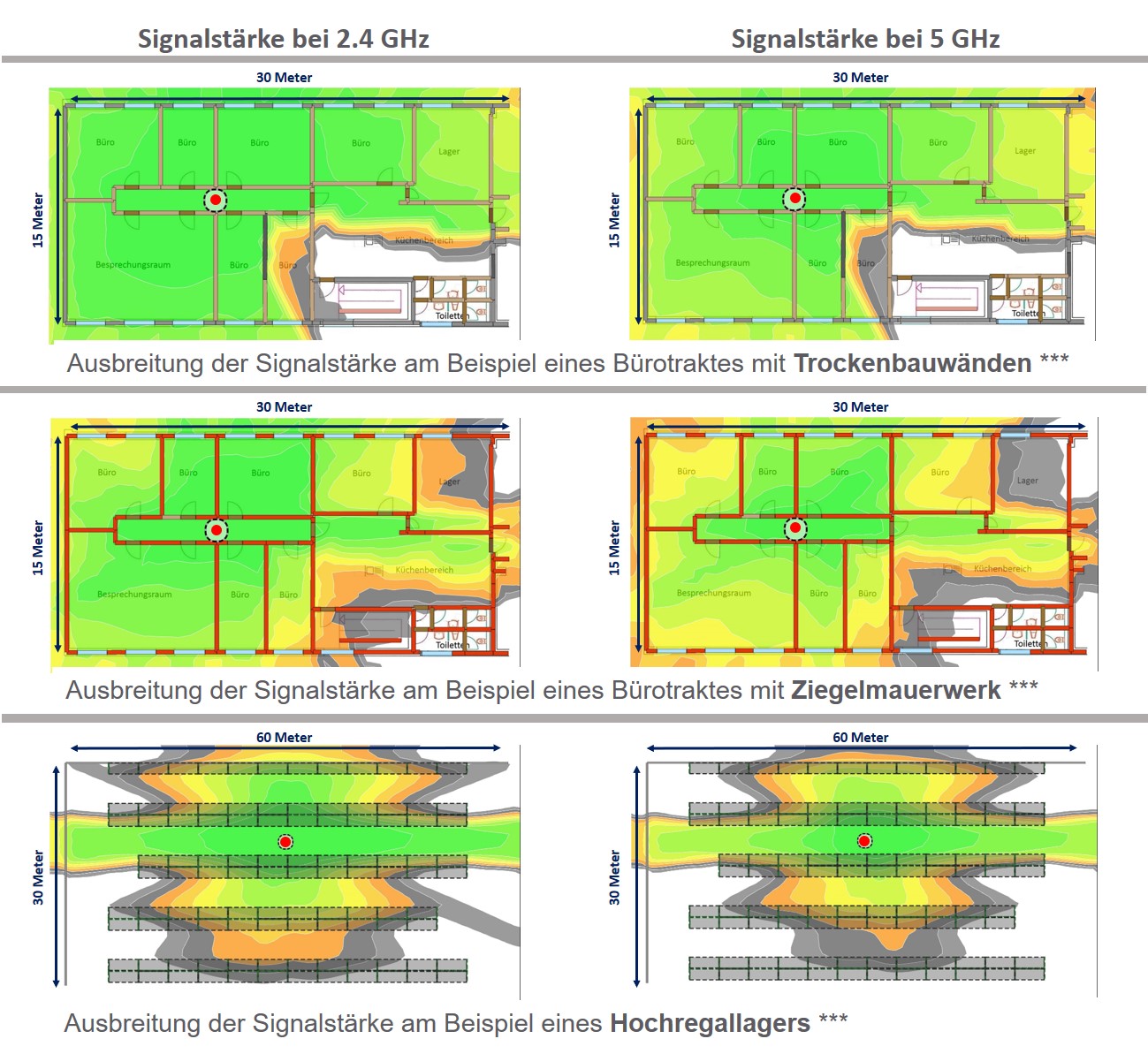

Signal strength of the FortiAP 23JF in different scenarios (Ceiling mounting)


***These graphics show the propagation of the signal strength within the framework of standardized attenuation values for walls and interference sources according to the respective material properties. Deviations in the signal propagation are possible depending on the building substance.

Fortinet FortiAP-23JF Product information

Antennas: 5 Internal + 1 BLE
Assembly: Ceiling , T-rail , Wall
Environment: Indoor
Frequency: 2,4 GHz, 5 GHz
Maximum Throughput 2.4 GHz: 574 Mbps
Maximum Throughput 5 GHz: 1,2 Gbps
Radios: 3 + 1 BLE
802.11: a, b, g, n, ac, ac W2, ax
MIMO: 2x2:2 MU MIMO
Compare product
Rating
Description
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "PB.ForitAP-234G" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "pb.forti.ap432G" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "pb.forti.ap441K" | trans | raw }}
{{ "pb.forti.ap443K" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
{{ "buttons.fortiap" | trans | raw }}
Price

€409.59*

€389.61*

€589.41*

€1,198.80*

€1,338.66*

€2,597.40*

€1,468.53*

€1,718.28*

€1,828.17*

€1,028.97*

€219.78*

€239.76*

€389.61*

€979.02*

€659.34*

€1,608.39*

€729.27*

€629.37*

€1,548.45*

€679.32*

Antennas
5 Internal + 1 BLE
4 Internal
2 Extern + 2 RPSMA Connector
10 Intern
8 Internal
8 Extern + 1 BLE
4 Extern + 4 RPSMA Connector
11 Intern
11 Extern
12 Internal + 1 BLE
4 Internal + 1 BLE
4 External
3 Internal
3 External + 1 BLE external
5 Internal + 1 BLE
5 External + 1 BLE
5 External + 1 BLE
10 Internal + 1 BLE
11 Extern
10 External + 1 BLE
Assembly
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Mast; Wall
Ceiling ; T-rail ; Wall
-
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Mast; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Ceiling ; T-rail ; Wall
Environment
Indoor
Indoor
Indoor
Outdoor
Indoor
Outdoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Indoor
Outdoor
Indoor
Outdoor
Indoor
Indoor
Outdoor
Indoor
Frequency
2,4 GHz; 5 GHz
2,4 GHz, 5 GHz & 6 GHz; 20 / 40 / 80 / 160 MHz
2,4 GHz, 5 GHz & 6 GHz
-
2,4 GHz, 5 GHz & 6 GHz
-
2,4 GHz, 5 GHz & 6 GHz
-
-
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 2,4 GHz & 5 GHz; 5 GHz; 20 / 40 / 80 MHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
2,4 GHz & 5 GHz
2,4 GHz; 5 GHz
2,4 GHz & 5 GHz
Maximum Throughput 2.4 GHz
574 Mbps
574 Mbps
574 Mbps
574 Mbps
1,18 Gbps
1182 Mbps
1,18 Gbps
1,18 Gbps
1,18 Gbps
1,147 Gbps
400 Mbps
400 Mbps
574 Mbps
574 Mbps
1,18 Gbps
1,147 Gbps
1,18 Gbps
-
4,8 Gbps
-
Maximum Throughput 5 GHz
1,2 Gbps
1,2 Gbps
1,2 Gbps
1,201 Mbps
2,47 Gbps
2475 Mbps
2,47 Gbps
8.648 Gbps
8.648 Gbps
4,8 Gbps
867 Mbps
867 Mbps
1,2 Gbps
1,2 Gbps
2,47 Gbps
2,4 Gbps
2,47 Gbps
4,8 Gbps
4,8 Gbps
4,8 Gbps
Radios
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
3 + 1 BLE
4 + 1 BLE
4 + 1 BLE
3 + 1 BLE
2
2
3 + 1 BLE
3 + 1 BLE
2
3 + 1 BLE
2
2
3 + 1 BLE
2
802.11
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ax
-
a; b; g; n; ac; ax
e; g; h; i; k; n; r; v; a; b; ac; ax
a; b; g; n; ac; ax
-
-
a; b; g; n; ac; ax
a; b; g; n; ac
a; b; g; n; ac
a; b; g; n; ac; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ax
a; b; g; n; ac; ac W2; ax
a; b; g; n; ac; ax
MIMO
2x2:2 MU MIMO
2x2:2 MU MIMO
2x2:2 MU MIMO
-
4x4:4 MU MIMO
-
4x4:4 MU MIMO
-
-
8x8:8 MU MIMO
2x2:2
2x2:2
2x2:2 MU MIMO
2x2:2 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
4x4:4 MU MIMO
Abmessungen Breite x Tiefe x Höhe
-
182 x 182 x 54 mm
-
-
-
-
-
-
-
-
-
-
153 x 153 x 53 mm
-
-
-
-
-
-
-
Anzahl Netzteile inklusive / maximal
-
0 / 2
-
-
-
-
-
-
-
-
-
-
0 / 2
-
-
-
-
-
-
-
Gewicht
-
0,8 kg
-
-
-
-
-
-
-
-
-
-
0,54 kg
-
-
-
-
-
-
-
Max. Datenrate 6 Ghz
-
2,4 Gbps
2,4 Gbps
2401 Mbps
4,8 Gbps
4804 Mbps
4,8 Gbps
11.530 Gbps
11.530 Gbps
-
-
-
-
-
-
-
-
-
-
-
Number of 2.5 GE RJ45 Ports
-
1
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
Power supply
-
PoE
-
PoE
-
-
-
PoE
PoE
-
-
-
PoE+
-
-
-
-
-
-
-
Stromversorgung
-
Extern
-
-
-
-
-
-
-
-
-
-
Extern
-
-
-
-
-
-
-
802.1
-
-
-
-
-
X
-
-
-
-
-
-
-
-
-
-
-
-
-
-
802.3
-
-
-
-
-
ad; at; az; bt
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Number of GE RJ45 Ports
-
-
-
-
-
-
-
-
-
-
-
-
2
-
-
-
-
-
-
-
